One Touch Rebar Coupler
One Touch Rebar Coupler, 45# Carbon Steel+20crom, Can Customized.
share to:
Product Information
Introduction:
One touch rebar coupler is a node piece coupled to the groove of the rebar node with excellent tensile strength. If it is compared with other coupling types such as all-in-one type interior, detachable interior and wedge type, one touch rebar coupler, insert type, is considered to have the fastest construction speed among Korean site coupling types. Therefore, it can save significantly on installation time, labor and equipment cost.

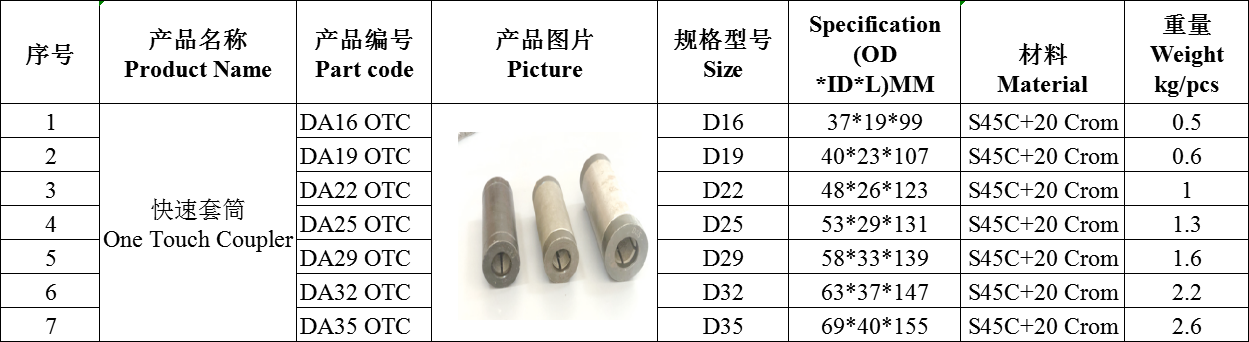

Specifications:
| Imperial Rebar Size | Model Number | Length (mm) | Outer diameter (Φ) | Weight (Kg) |
| #4 | D13 | 86 | 32 | 0.26 |
| #5 | D16 | 100 | 37 | 0.378 |
| #6 | D19 | 114 | 42 | 0.523 |
| #7 | D22 | 130 | 48 | 0.84 |
| #8 | D25 | 146 | 54 | 1.1 |
| #9 | D29 | 160 | 61 | 1.295 |
| #10 | D32 | 173 | 68 | 2.031 |
| #11 | D35 | 186 | 72 | 2.45 |
| Tolerance : ±3mm | ||||
Product Advantage:
1.Very fast, Save time.
2.No need machine process rebar
3.Manufactured under strict quality assurance plan ISO9001

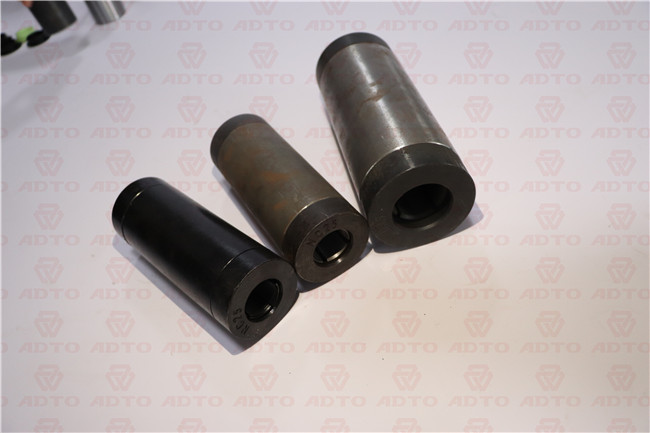

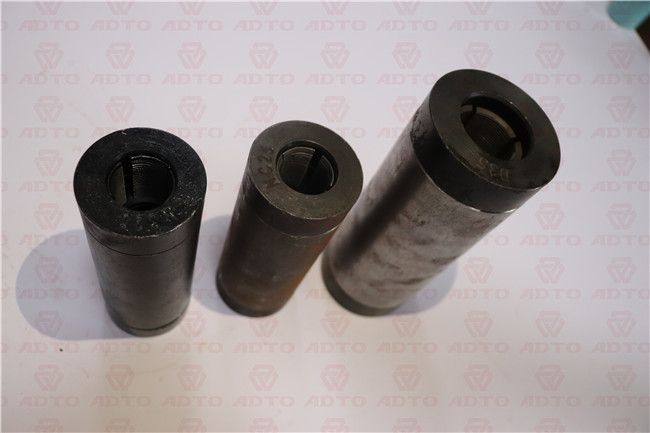

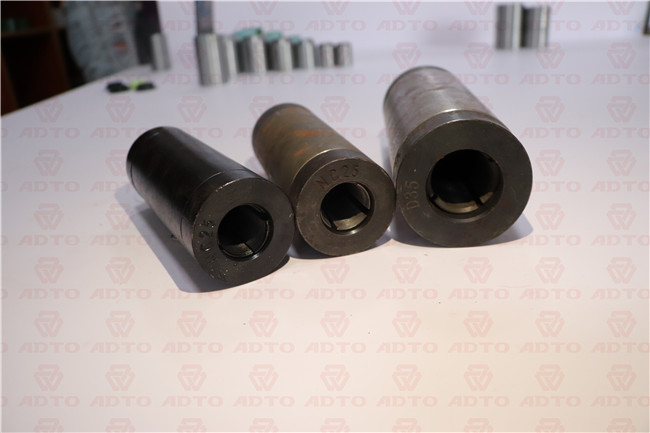

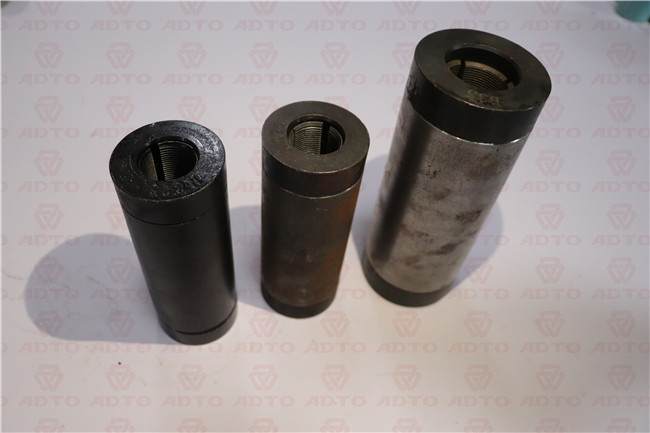

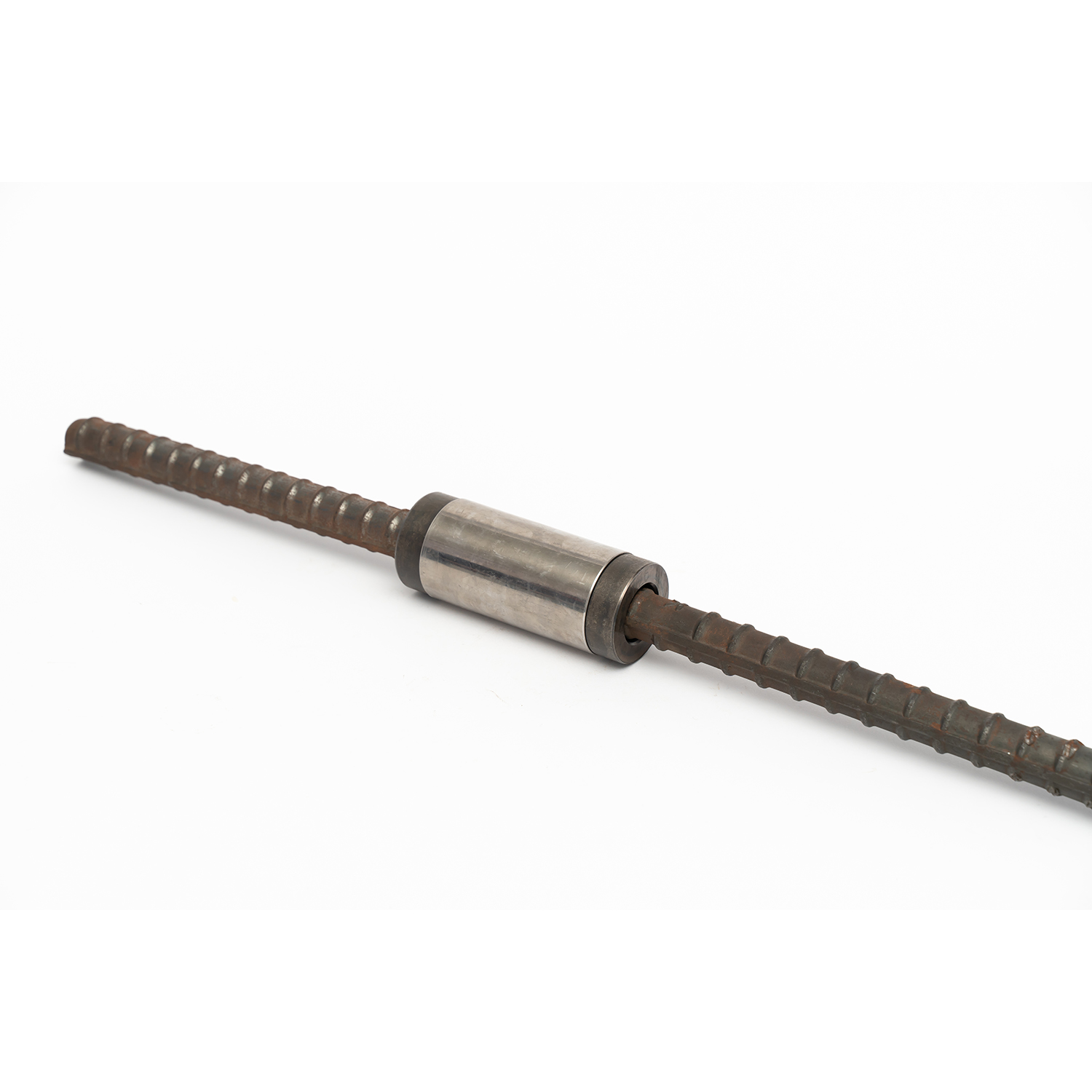

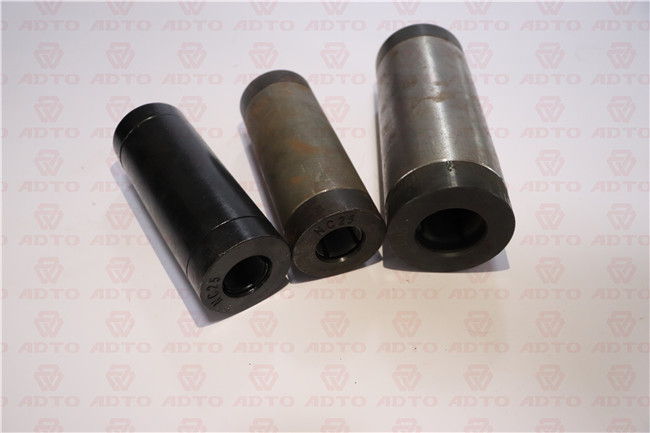

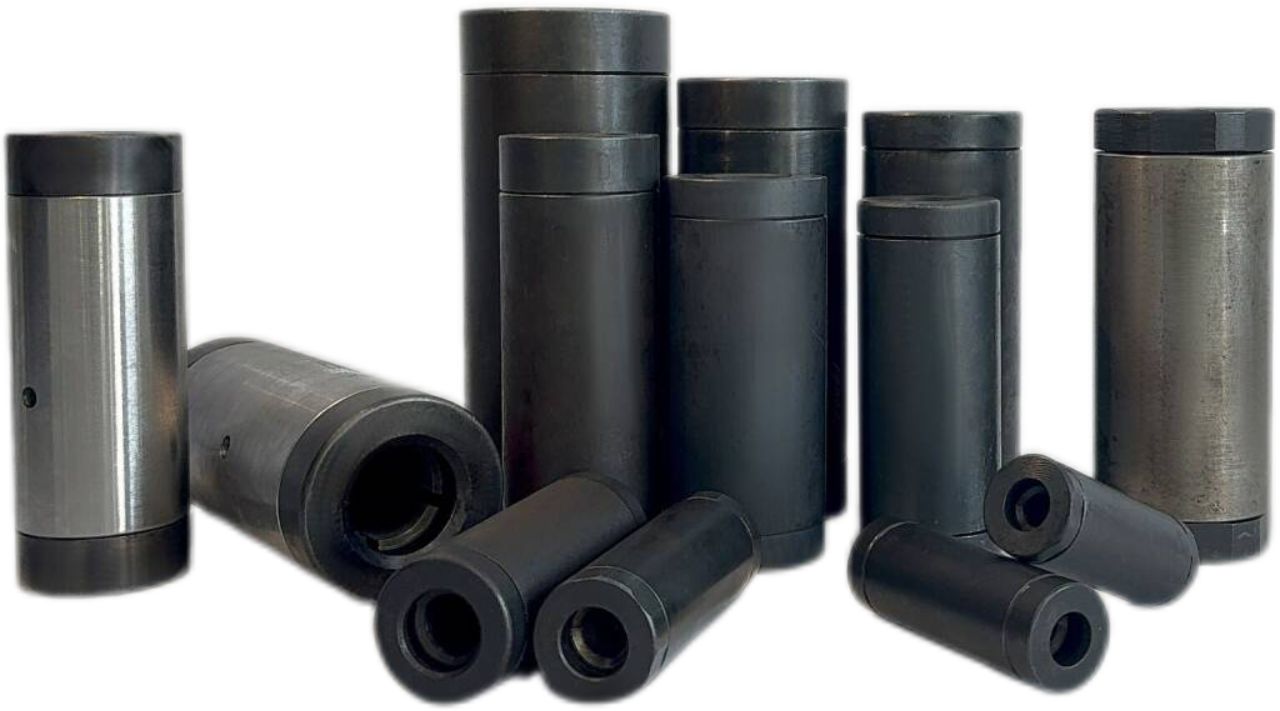

Product Picture

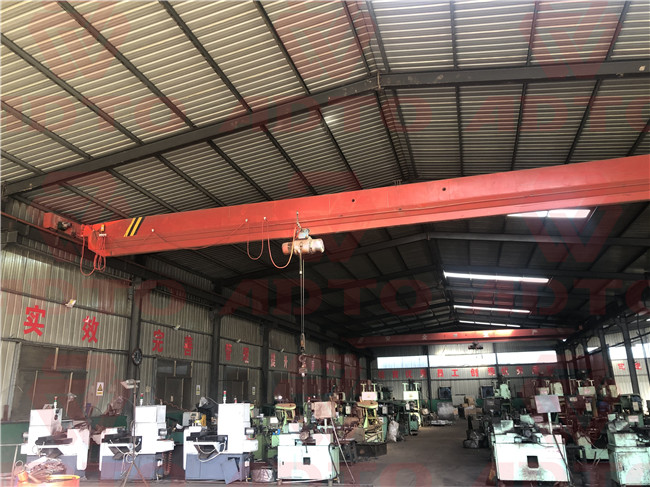

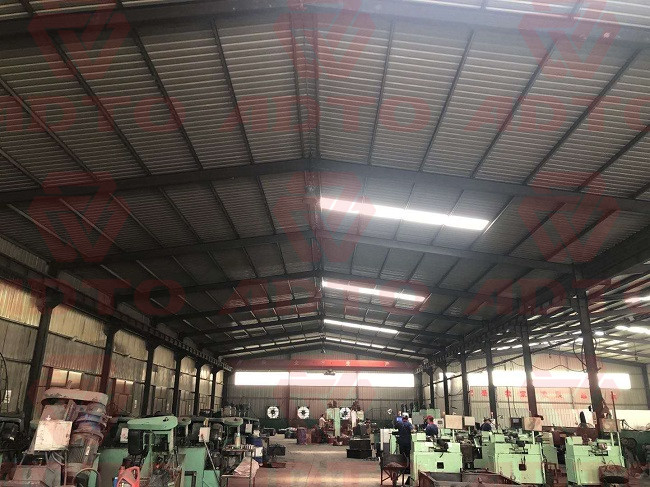

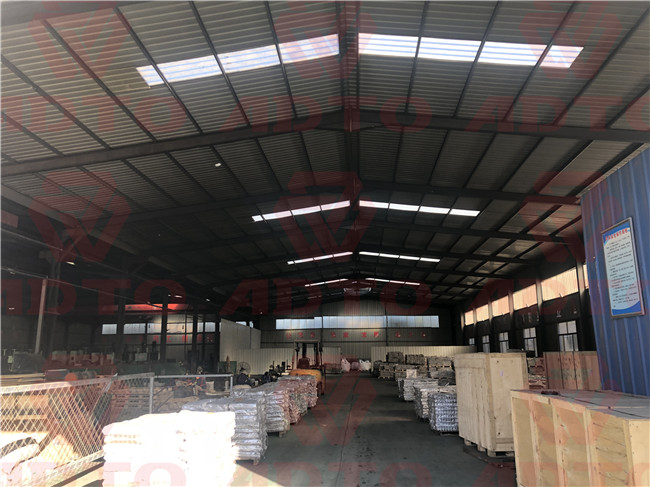

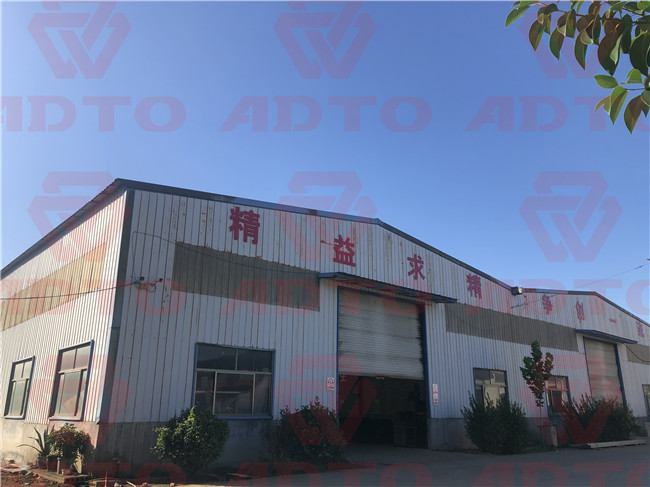

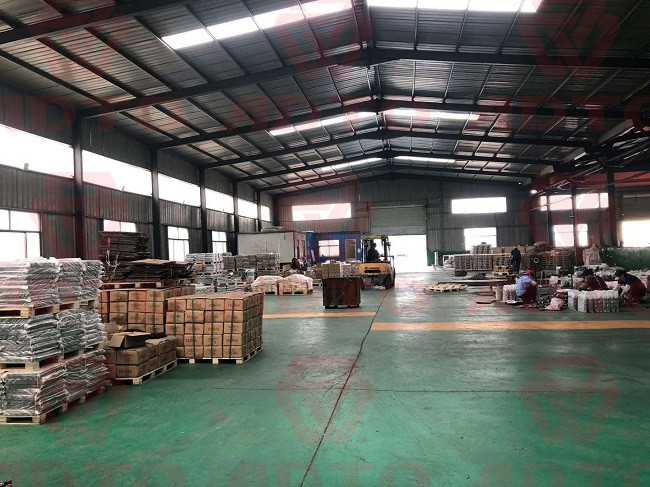

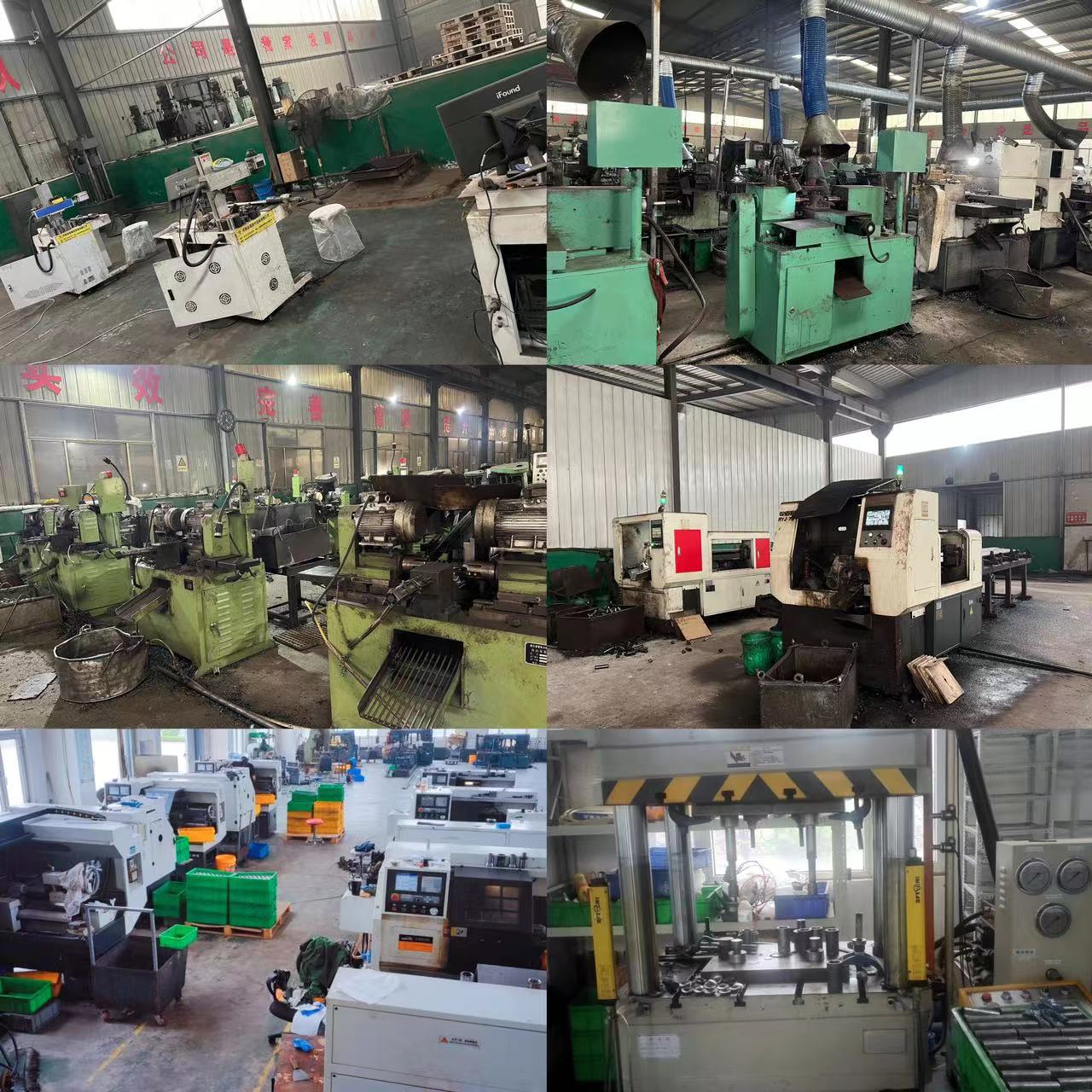

Factory & Inventory

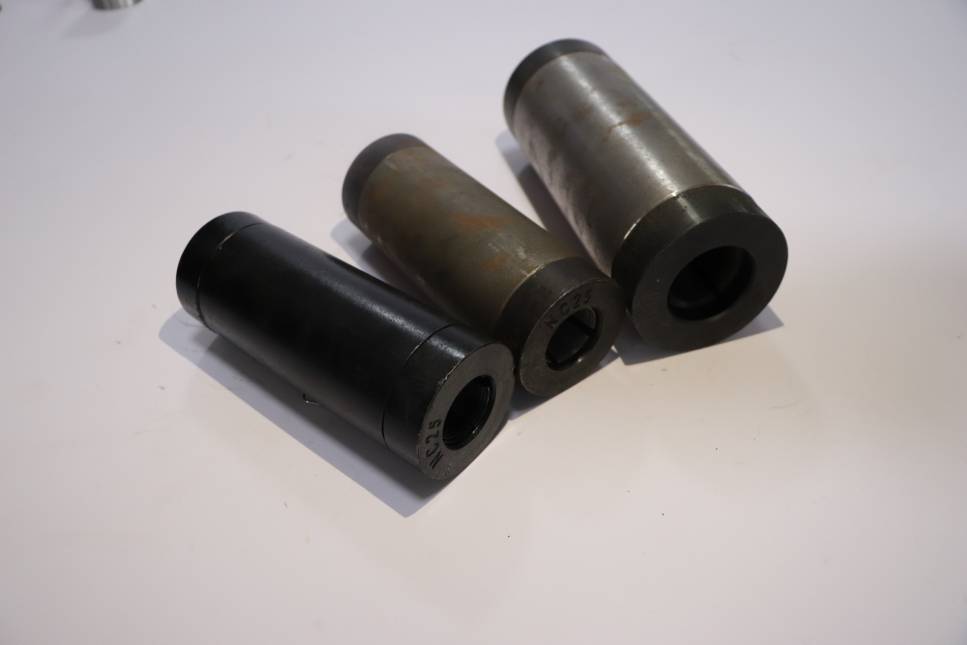

Package & Shipping

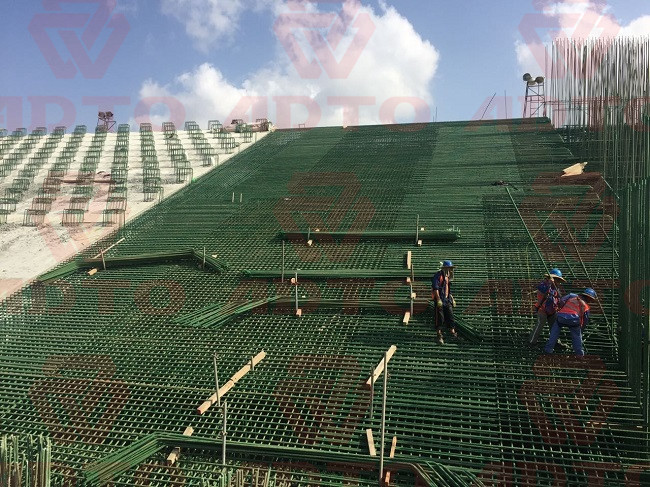

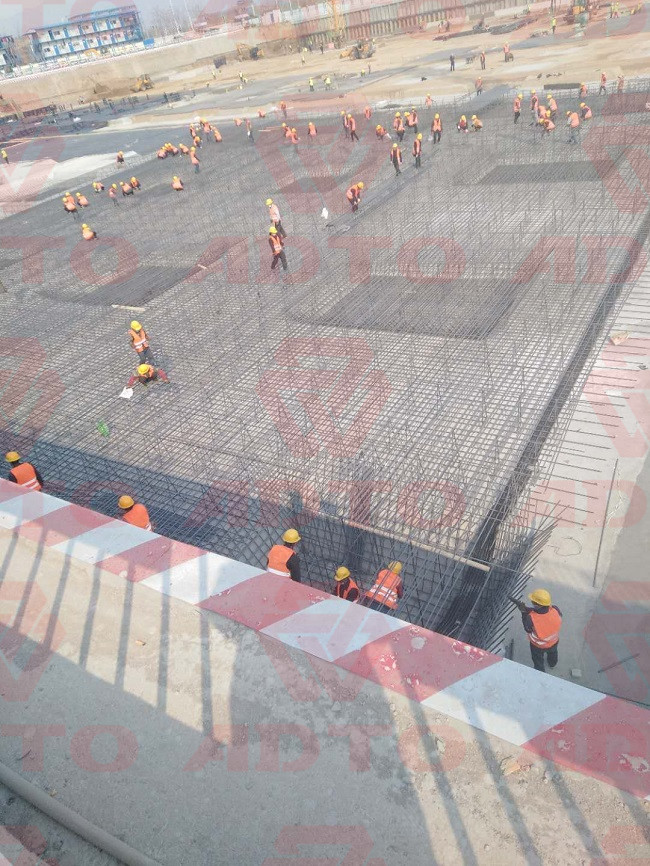

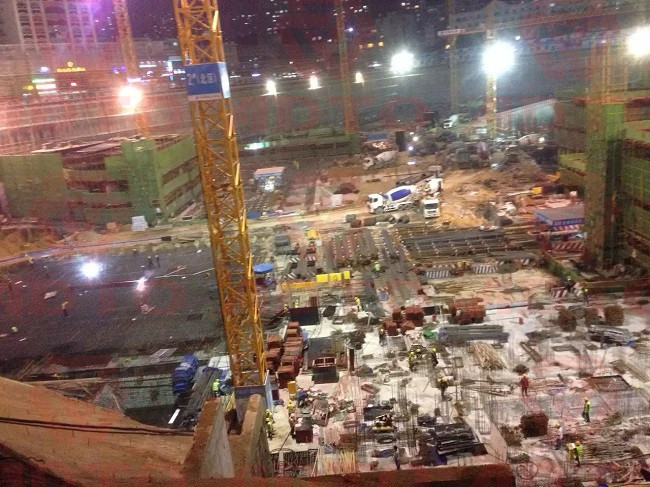

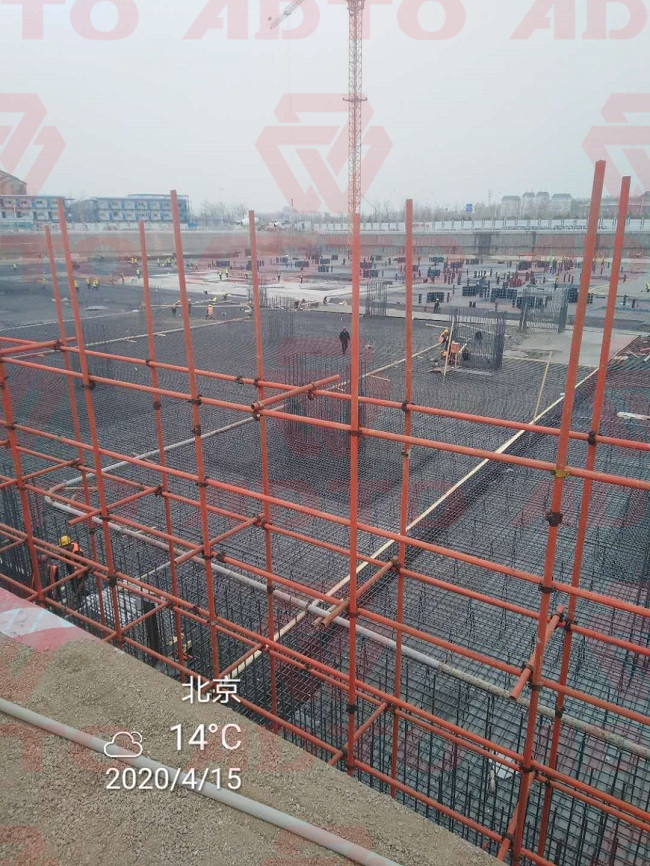

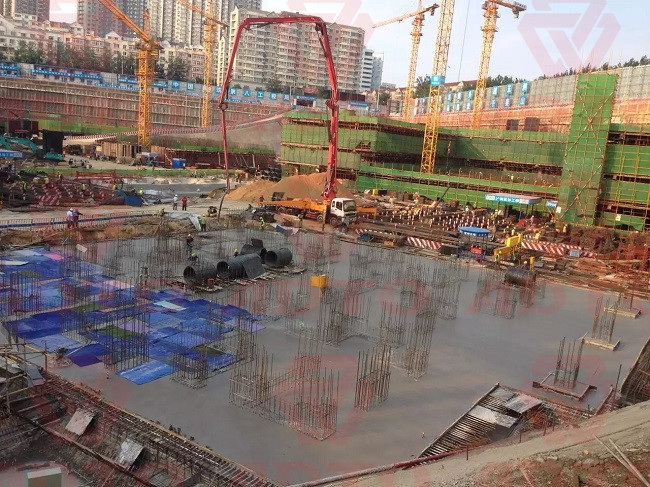

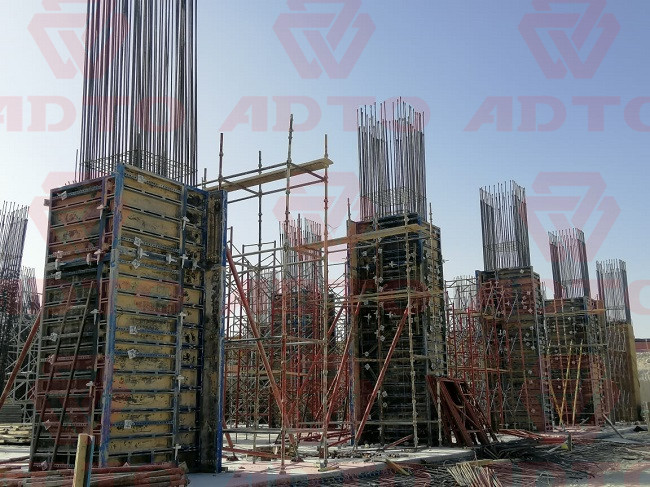

Project
